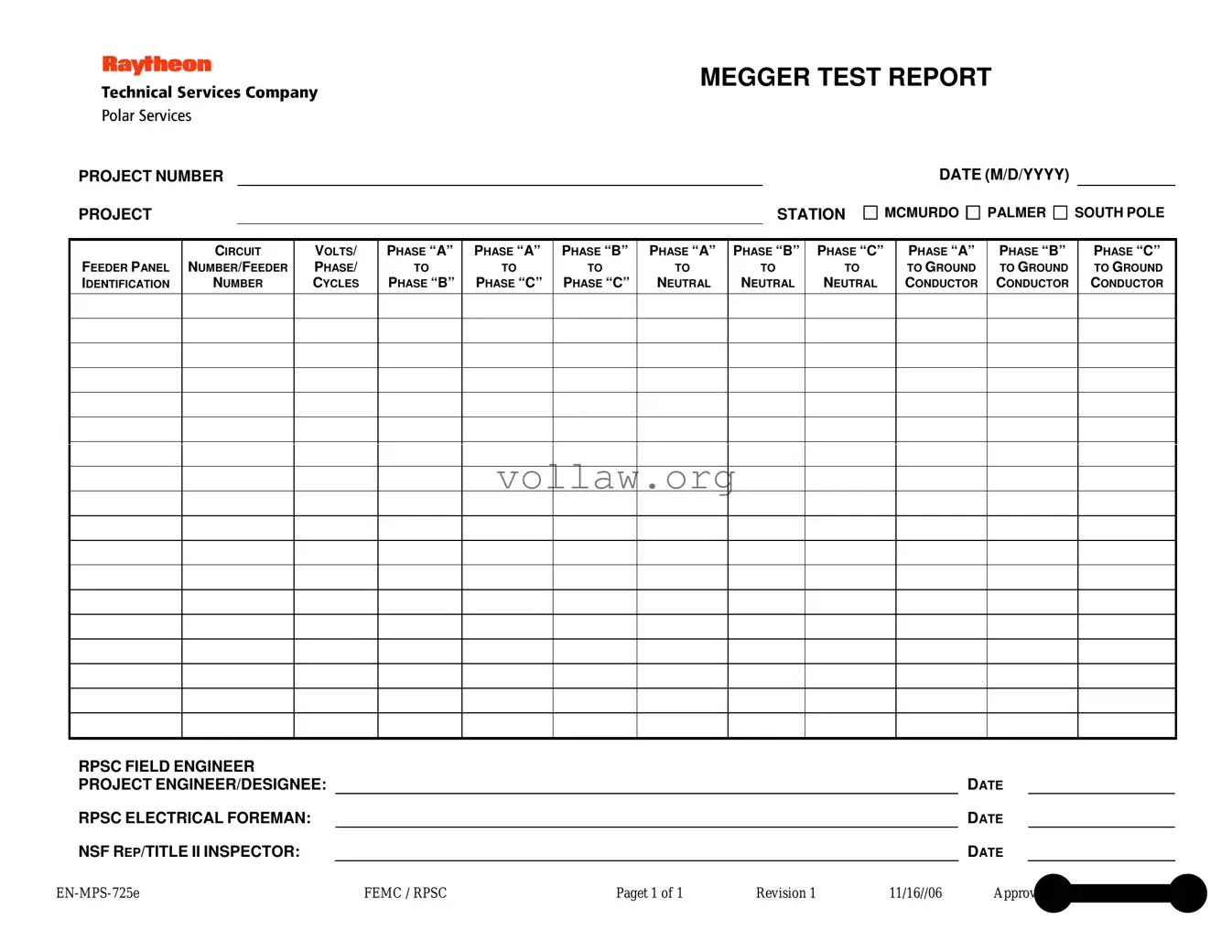

Megger Test Template

Megger Test: Usage Instruction

Completing the Megger Test form is a straightforward process that helps in documenting vital electrical testing data. Make sure to gather all necessary details before starting, as accuracy is crucial. Each section of the form captures specific information that must be filled out in a precise manner to ensure clarity and compliance. Follow these steps to fill out the form effectively.

1. Locate the Project Information Section: Fill in the PROJECT NUMBER and name of the PROJECT STATION (choose from McMurdo, Palmer, or South Pole).
2. Date: Enter the date in the format M/D/YYYY.
3. Feeder Panel Identification: Write down the FEEDER PANEL IDENTIFICATION.
4. Circuit Number/Feeder Number: Input the circuit or feeder number related to the project.
5. Voltage, Phase, and Cycles: Fill in the VOLTS/PHASE/CYCLES applicable to your testing.
6. Record Phase Measurements: Document the measurements for all indicated phases and neutrals:
   • Phase "A" to Phase "B"
   • Phase "A" to Phase "C"
   • Phase "B" to Phase "C"
   • Phase "A" to Neutral
   • Phase "B" to Neutral
   • Phase "C" to Neutral
   • Phase "A" to Ground
   • Phase "B" to Ground
   • Phase "C" to Ground
7. Field Engineer Signatures: Ensure that the RPSC FIELD ENGINEER, the PROJECT ENGINEER/DESIGNEE, and the RPSC ELECTRICAL FOREMAN sign the form and input the date next to their signatures.
8. NSF Representative: The NSF REP/TITLE II INSPECTOR must also sign and date the report.

1. What is a Megger Test?

   The Megger Test, formally known as insulation resistance testing, evaluates the integrity of electrical insulation under test conditions. It helps identify potential failures or degradation in electrical systems, ensuring safety and reliability.

2. What is included in the Megger Test report?

   The Megger Test report contains critical information such as:

   • Project number
   • Project station
   • Date of test (formatted as M/D/YYYY)
   • Identification of the feeder panel
   • Circuit and feeder numbers
   • Electrical voltage specifications
   • Resistance measurements between phases and neutral/ground
   • Signatures of the responsible engineers and inspectors

3. What phases are typically tested?

   The Megger Test typically includes testing between the following:

   • Phase A to Phase B
   • Phase A to Phase C
   • Phase B to Phase C
   • Phase A to Neutral
   • Phase B to Neutral
   • Phase C to Neutral
   • Phase A to Ground
   • Phase B to Ground
   • Phase C to Ground

4. How do I read the test results?

   Each test result will provide a resistance value, typically measured in megohms. Higher resistance values indicate better insulation integrity. Values below specified thresholds may signal potential issues and require further investigation.

5. Who is responsible for conducting the Megger Test?

   The test is usually performed by qualified field engineers trained in electrical safety and testing procedures. The results should be reviewed by both the project engineer/designee and the electrical foreman.

6. Why is a Megger Test important for safety?

   Conducting a Megger Test is vital for identifying insulation failures that could lead to electrical hazards, such as shorts or fires. Regular testing helps ensure all electrical systems operate safely and efficiently.

7. How often should Megger Tests be performed?

   The frequency of Megger Tests depends on factors like the environment, type of equipment, and regulatory requirements. Generally, it is advisable to perform them on a regular basis, such as annually or semi-annually, depending on usage and manufacturer recommendations.

8. What do I do if the test results are unsatisfactory?

   If the test results indicate low insulation resistance, immediate action should be taken. This may include further investigation, repairs, or replacement of the affected components. Consulting with a qualified engineer is essential.

9. Where can I find additional resources or training on Megger Testing?

   Numerous resources are available through electrical safety organizations, industry standards bodies, and training programs. Equipment manufacturers often provide manuals and guides that include testing procedures and safety protocols.

Completing the Megger Test form accurately is crucial for ensuring reliable electrical testing results. However, many individuals make mistakes that can lead to errors in data interpretation. Here are nine common errors to watch out for while filling out the form.
