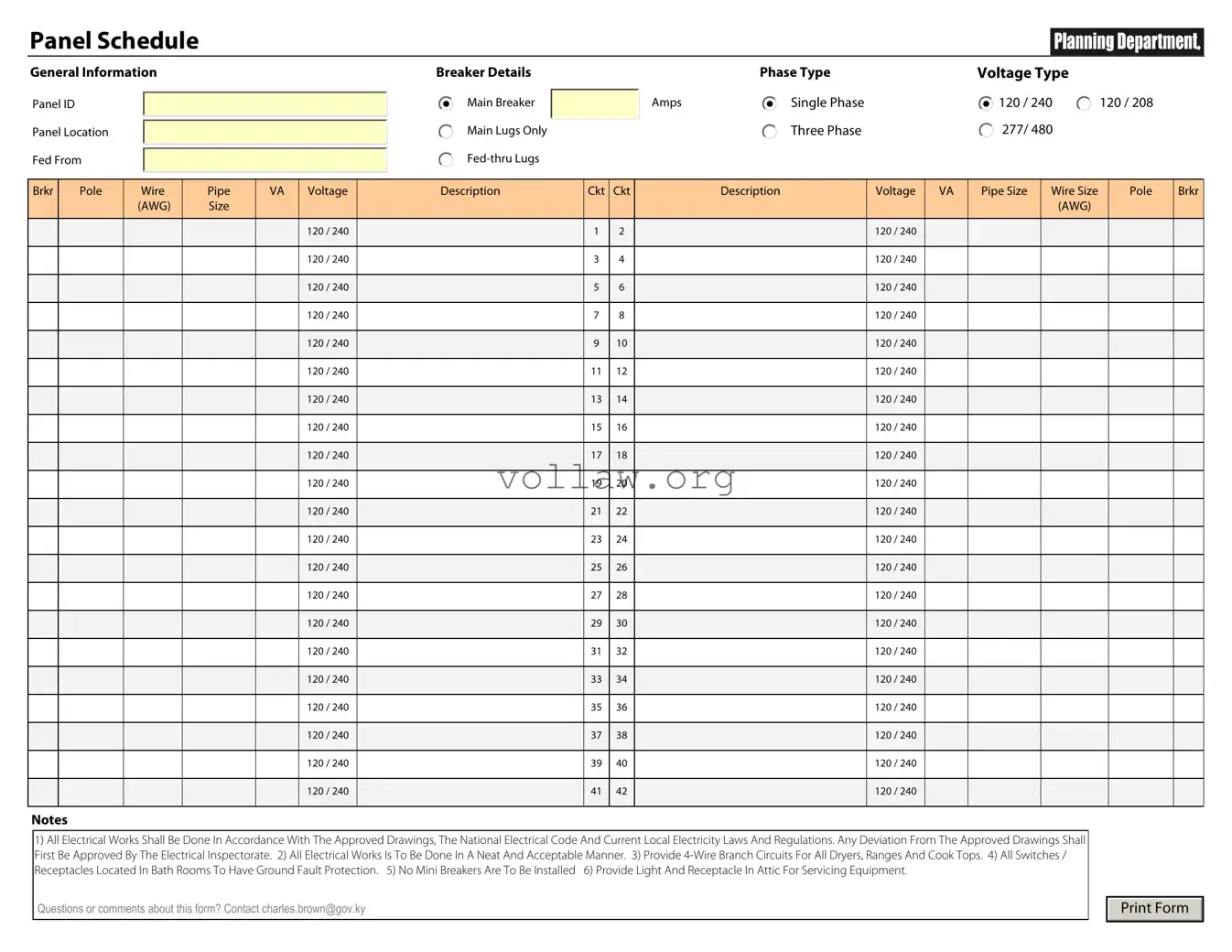

Electrical Panel Schedule Template

Electrical Panel Schedule: Usage Instruction

To ensure a seamless process in managing your electrical systems, filling out the Electrical Panel Schedule form accurately is vital. Once completed, this form will provide an organized overview of your electrical panel's configuration, helping to ensure safety and compliance.

1. Gather Necessary Information: Before starting, collect all relevant data, including the number of circuits, circuit ratings, and load requirements.
2. Identify the Panel: Write down the panel's name or number at the top of the form. This will help track the specific panel you are working with.
3. Fill in Circuit Information: For each circuit listed, enter the circuit number, description, and amp rating in the designated fields. Make sure to double-check your entries for accuracy.
4. Document Load Calculations: Estimate the load on each circuit, using current or anticipated usage. Record these calculations as instructed on the form.
5. Review and Validate: Once all sections of the form are filled out, review for any missing information or errors. It’s crucial for the safety and effectiveness of your electrical system.
6. Sign and Date: After ensuring accuracy, sign and date the form at the bottom. This step is essential for validating the information documented.

1. What is an Electrical Panel Schedule?

   An Electrical Panel Schedule provides a clear overview of the electrical circuits within a panel. This document details the circuits, their respective loads, and any relevant safety information. It serves as a guide for both installation and maintenance of electrical systems.

2. Why is an Electrical Panel Schedule important?

   This schedule is essential for ensuring safety and efficiency in electrical management. It helps in identifying circuits and the load on each circuit, which is crucial for preventing overloads. Without a proper schedule, managing repairs and upgrades can become difficult and potentially hazardous.

3. How is an Electrical Panel Schedule created?

   To create an Electrical Panel Schedule, an electrician typically notes each circuit’s details, such as the circuit number, amperage, and the appliances or devices powered by that circuit. This information is compiled into a standardized format, which may include a layout of the panel showing the arrangement of circuits.

4. Who needs an Electrical Panel Schedule?

   Homeowners, electricians, and contractors benefit from having an Electrical Panel Schedule. It is useful for anyone involved in managing or assessing the electrical system of a building, whether for routine maintenance or renovation purposes.

5. How often should an Electrical Panel Schedule be updated?

   Updating the Electrical Panel Schedule should occur whenever changes are made to the electrical system. This includes the addition of new circuits, changes in load, or after repairs. Regular reviews, at least annually, are also recommended to ensure the information remains accurate and relevant.

6. Can I use a template for the Electrical Panel Schedule?

   Yes, using a template can simplify the process of creating an Electrical Panel Schedule. Many templates are available online and can be customized to fit the specific needs of your electrical system. However, it is important to ensure that all relevant information is included to maintain accuracy.

7. What information should be included in the Electrical Panel Schedule?

   An effective Electrical Panel Schedule should include the following details:

   • Circuit number
   • Amperage rating
   • Voltage
   • Load description
   • Breaker type
   • Location of the circuit

   Including this information helps in both understanding and managing the electrical system effectively.

8. What happens if I do not have an Electrical Panel Schedule?

   Operating without an Electrical Panel Schedule increases the risk of electrical issues. This can lead to potential overloads, inefficient energy use, and difficulties during remodeling or repairs. In emergencies, locating and isolating circuits may become challenging, posing safety risks.

Filling out the Electrical Panel Schedule form can be a detailed task that requires accuracy. One common mistake people make is failing to correctly identify the panels. Each panel should have a unique name or designation that is easily identifiable. Without proper labeling, it can create confusion and lead to errors in electrical management.

Another frequent error occurs when individuals do not account for the total load calculations. Each circuit should be listed with its respective load, and skipping this step can result in insufficient power distribution. It is crucial to ensure that the values add up appropriately to prevent potential overloads.

People often neglect to specify the types of circuits. For example, labeling circuits as general-purpose instead of specifying if they are dedicated circuits can lead to inadequate performance. Accurate descriptions help to maintain safety and maximize efficiency.

Inconsistent unit measurements present another challenge. Individuals sometimes switch between amperes and volts without proper clarity. Consistency in measurement units is essential for clear communication and accurate reference.

Overlooking future expansions is another common mistake. A well-constructed Electrical Panel Schedule should factor in potential future circuits or equipment. Failing to do so can lead to difficulties when the system needs to be upgraded or modified.

Another issue arises from the lack of notes or annotations on the schedule. Details about the specific usage of certain panels or circuits can be incredibly beneficial for future reference. Without notes, others may struggle to understand the original intent of the setup.

Errors in contact information can also cause problems. If there is no clear point of contact for questions regarding the electrical system, it can hinder timely responses during emergencies. Always ensure that the appropriate personnel's information is listed and up to date.

Lastly, many people forget to review their completed forms. Taking the time to double-check entries can catch errors before they become bigger issues. A thorough review ensures accuracy and helps maintain safety standards throughout the electrical system.

When managing electrical installations, the Electrical Panel Schedule form plays a crucial role in organizing the various circuits and their corresponding electrical loads. To complement this document, several other forms and documents are frequently used. These documents enhance understanding, compliance, and coordination amongst various stakeholders involved in electrical projects.

• Load Calculation Worksheet: This document helps determine the overall electrical load demand for a building. It provides vital calculations that ensure the electrical system can handle the required power safely and efficiently.
• One-Line Diagram: A simplified drawing that illustrates the electrical distribution system. It depicts the main components and their connections, facilitating better understanding and communication between electrical engineers and contractors.
• Electrical Service Agreement: This contract outlines the terms and conditions between a service provider and the customer. It details the scope of work, payment terms, and responsibilities, ensuring clarity and accountability.
• Installation Instructions: These guidelines provide specific directions for the proper installation of electrical equipment and systems. They are crucial for ensuring safety and compliance with industry standards.
• Inspection Checklists: Used by inspectors to evaluate electrical systems against established safety criteria. They help ensure all components, including breakers and grounding systems, meet regulatory standards before activation.
• Maintenance Log: This ongoing record tracks routine inspections, repairs, and maintenance activities. It is vital for ensuring the long-term reliability and safety of the electrical system.
• Change Order Form: This document is used to formally request changes to the scope of work initially agreed upon. It helps manage project alterations efficiently and ensures all parties are informed of adjustments to timelines or costs.

Utilizing these documents alongside the Electrical Panel Schedule enhances organization and efficiency in electrical projects. Each plays a specific role in maintaining safety, ensuring compliance, and enhancing communication amongst the various teams involved in the project.

• Electrical Load Calculation Worksheet: This document helps assess the power requirements of a building, much like the Electrical Panel Schedule. Both are crucial for ensuring that the electrical system can handle the anticipated load.

• Breaker Panel Load Chart: Similar to the Electrical Panel Schedule, this chart details the specific loads connected to each circuit breaker, aiding in understanding power distribution and safety.

• Circuit Wiring Diagram: This diagram shows how the electrical circuits are wired throughout the building, paralleling the Electrical Panel Schedule by providing insights on power pathways and connections.

• Service Entrance Schedule: Like the Electrical Panel Schedule, this document outlines the main electrical service components, focusing on voltage and power requirements for specific areas or buildings.

• Lighting Fixture Schedule: This document lists all lighting fixtures and their specifications. It complements the Electrical Panel Schedule by detailing specific electrical consumption linked to various fixtures.

• Generator Load Management Plan: This plan identifies the load capacity of a generator, ensuring that the backup power source aligns with the capabilities noted in the Electrical Panel Schedule.

• Power Distribution Plan: Similar in intent, this plan illustrates how power is distributed across different circuits and systems, reflecting information found in the Electrical Panel Schedule.

• Electrical Inspection Report: This report documents findings from an electrical inspection, ensuring safety and compliance, thereby complementing the detailed information within the Electrical Panel Schedule.

When filling out the Electrical Panel Schedule form, it’s important to follow guidelines to ensure accuracy and clarity. Here’s a list of what to do and what to avoid:

• Do: Double-check all specifications for accuracy before submission.
• Do: Use clear, legible handwriting or type to avoid confusion.
• Do: Include all necessary details, such as circuit numbers and load capacities.
• Do: Consult an electrician if you are unsure about any information required.

• Don't: Forget to update the form if any changes occur after initial filling.
• Don't: Use abbreviations that may not be widely understood.
• Don't: Leave any fields blank; every space should be filled out.
• Don't: Rush the process; take your time to prevent errors.

Many people have misunderstandings about the Electrical Panel Schedule form. Clearing up these misconceptions can help improve safety and efficiency in electrical systems. Here’s a list of some common misconceptions:

• It is only necessary for large buildings. Many believe that only big commercial structures need an Electrical Panel Schedule. In reality, any building using electricity, even small residences, can benefit from this document.
• Only electricians can understand it. Some think that the form is too complex for anyone but licensed electricians. While it does contain technical information, property owners and managers can learn to read and use it effectively.
• It is only about circuit breakers. Many assume that the Electrical Panel Schedule focuses solely on circuit breakers. In fact, it also includes information on load calculations, panel ratings, and circuits.
• It remains unchanged over time. Some believe that once this schedule is created, it never changes. However, as upgrades and modifications occur, the schedule should be updated to reflect the current setup.
• It is not necessary if there is a smart panel. Some may think that having a smart panel eliminates the need for a schedule. Smart panels are helpful, but a clear schedule is still essential for planning and audits.
• It does not impact safety. There is a belief that the schedule is merely for convenience. In reality, a well-maintained schedule plays a critical role in ensuring electrical safety and proper functioning.
• Only one schedule is needed for the entire building. Some people think a single schedule suffices for an entire facility. Different areas may have unique requirements, thus making multiple schedules beneficial.
• Once filled out, it is a static document. Many think that completing the form means it will not change. Regular reviews and updates are essential to keeping the schedule applicable and useful for ongoing operations.

Understanding these misconceptions is important for maintaining efficient and safe electrical systems in any building. Regularly referring to and updating the Electrical Panel Schedule can lead to better management of electrical resources.

Here are some key takeaways for filling out and using the Electrical Panel Schedule form:

1. Accurate Information: Ensure all circuit and load data are entered correctly. This helps in maintaining safety and compliance with regulations.
2. Label Clearly: Clearly label each circuit with its purpose. This aids in quick identification during maintenance or troubleshooting.
3. Reference Standards: Follow industry standards when naming and numbering circuits. Consistency is key for clarity and organization.
4. Regular Updates: Update the schedule whenever changes occur, such as adding new circuits or changing load requirements. Keeping it current is essential.
5. Accessibility: Place the completed schedule in a visible location near the electrical panel. This ensures that anyone can access it quickly in case of an emergency.
